Giza, Egypt

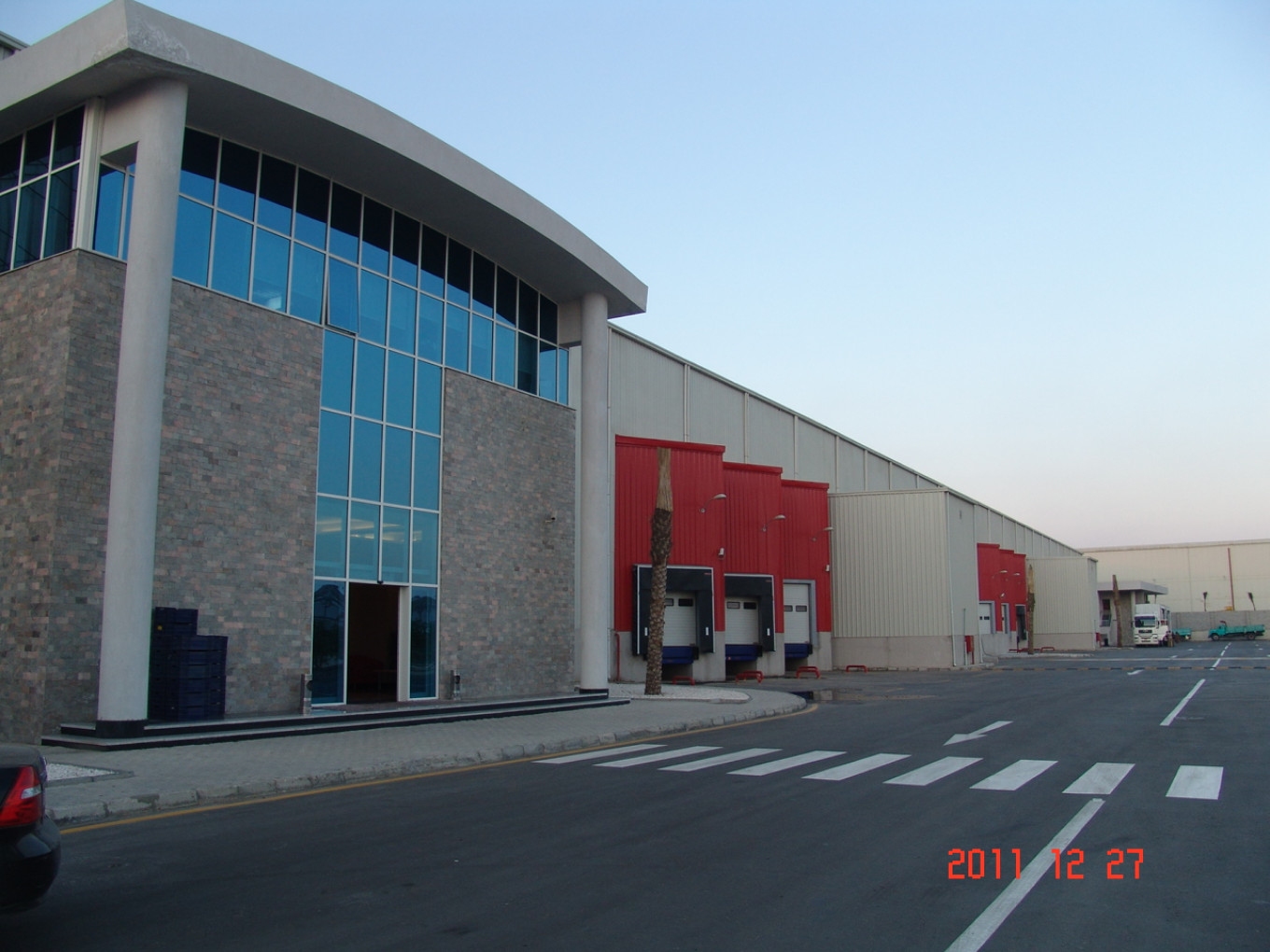

Aramex Mashreq Warehouse
The Aramex Mashreq Warehouse is divided into three main zones according to the racking system and is separated by two escape tunnels. The warehouse contains a dock levelers system that serves trucks and vans at the same time. The administration is housed in two floors of the building in the middle zone, supported by two separate administrations in each of the other zones. The building for workers and drivers contains a cafeteria and praying room. All areas are temperature controlled and could accommodate future extension. The complex is LEED certified and incorporates various energy efficiency features such as roof insulation and double glazing.
Project info
- Construction phase
- New construction
- Building type
- Non-residential building
- Detailed building type
- Warehouse
- Net floor area
- 32030 m2
- Land plot size
- 90679 m2
- Stories
- 2 stories
- Construction type
- Steel Frame
- Original construction year of the building
- 2012
- Project contact
- Dr. Moemen Afify
- Contact email address
- Moemen@maconsultants-eg.com
Project team
- Developer(s)/owner(s)
- Aramex
- Architect(s)
- MA Consultants
- Construction contractor(s)
- Gama for construction
- Energy efficiency consultant(s)
- LEED Consultant EMS
Building Rating and Certifications systems
- Rating and certifications systems
- LEED
Building Envelope
External walls
- Description of construction
- 41.60% of the total building materials have been manufactured and extracted locally (within 500 miles/804 KM of the project)
Roof
- Roof type
- Flat roof
- Description of construction
- Corrugated steel sheet + insulation + air gap + corrugated steel sheet with 79 Solar Reflectance Index
Openings and windows
- Glazing type
- Double glazed
- Overall u-value window
- 3 W/(m²*K)
Basement floor
- Description of construction
- Not applicable.
Technical Building Systems
Ventilation system
- Type of ventilation
- Ventilation rates for all occupied spaces meets the minimum established in ASHRAE Standard 62.1-2007. All ventilation fans are connected to BMS resulting in energy cost savings of 28.2% and an improved building envelope. Increased natural air ventilation rates by 30% above the minimum rates required by ASHRAE 62.1-2007.
Lighting system
- Primary lighting system
- LED (Light emitting diode lamps)
- Efficiency
- 100
- Secondary lighting system
- Skylights
Final Energy Demand
- Energy carrier (1)
- Electricity
- Total specific final energy demand
- 57 kWh/(m²*a)
